Surface Mount Power Supply Terminals

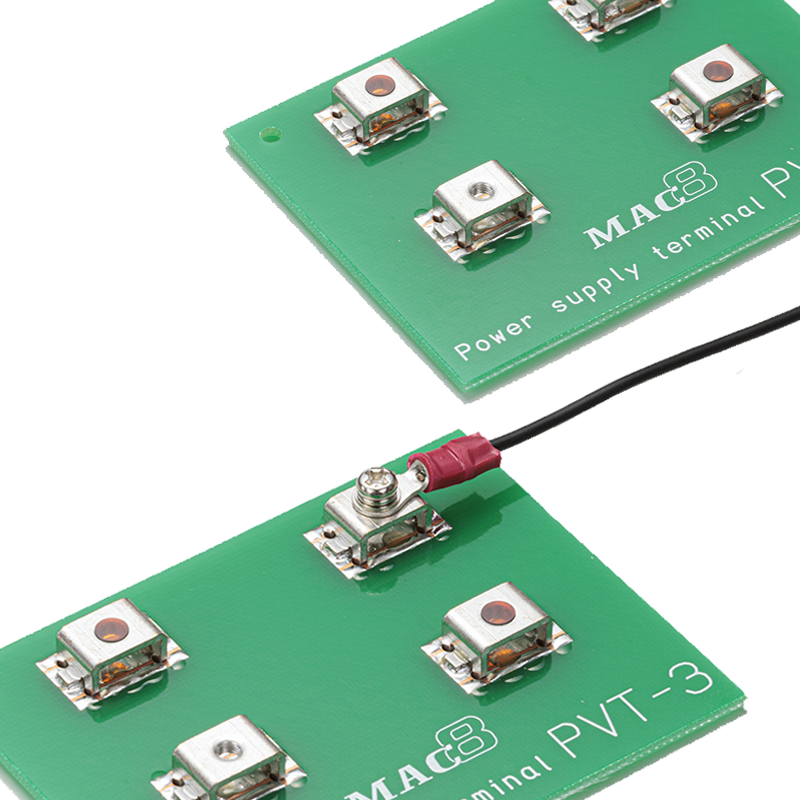

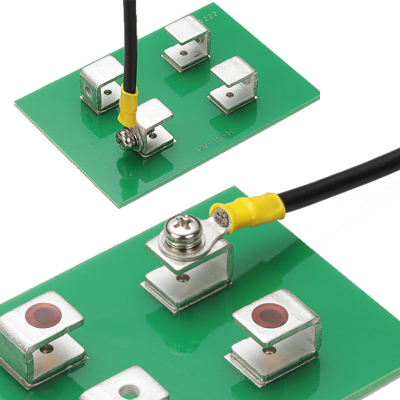

SMD Power Supply Terminals can be used to supply power to a printed circuit board.

Available in M3 and M5 screw sizes, the simple application from MAC8 allows wire, fitted with a crimping terminal, to be connected to the PCB.

M5 SMD Power Supply Terminal

• Material: Copper
• Finish: Tin plating over nickel base
• Rated Current: 80A
• Recommended metal mask thickness: 150 μm to 200 μm
• Tightening torque: 15kgf-cm（147N-cm）or less
• Instructions for use: Adsorption film applied to the screw head and then removed after reflow.
• Packaging: Available in bulk or taped and reeled

M3 SMD Power Supply Terminal

• Material: Copper
• Finish: Tin plating over nickel base
• Rated Current: 40A
• Recommended metal mask thickness: 150 μm to 200 μm
• Tightening torque: 6 kgf-cm（58.8N-cm）or less
• Instructions for use: Adsorption film applied to the screw head and then removed after reflow.
• Packaging: Available in bulk or taped and reeled
